UV board
UV board
- Specification
- Technical Data

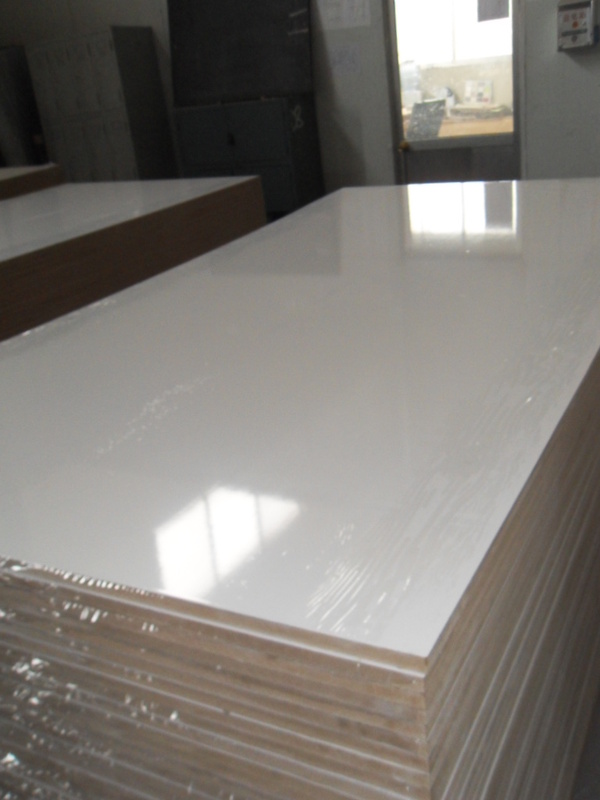

UV board is an advanced engineered panel featuring a cured ultraviolet (UV) resin coating that delivers exceptional surface hardness, aesthetic appeal, and environmental resistance. This high-performance material is manufactured through automated UV curing technology, creating a seamless, non-porous surface ideal for demanding interior and exterior applications.
Key Features
Ultra-Durable Finish – 3H-5H pencil hardness rating withstands scratches and abrasions
Instant Cure Technology – UV lamps polymerize coatings in seconds (vs. days for conventional finishes)
Hygienic Surface – Non-absorbent, bacteria-resistant (<0.5 CFU/cm² per ISO 22196)
Color Stability – ΔE<1.0 after 1000 hours QUV accelerated weathering
Fire Performance – Achieves Class B-s1,d0 per EN 13501-1 standard
Technical Specifications
| Parameter | Specification Range | Testing Standard |
|---|---|---|
| Thickness | 3mm-25mm (±0.2mm tolerance) | EN 324-1 |
| Density | 650-850 kg/m³ | ISO 9427 |
| Formaldehyde | ≤0.3mg/L (F★★★★ superior) | JIS A 1460 |
| Thermal Stability | -30°C to 80°C | ASTM D1037 |
Manufacturing Process
Substrate Preparation – Precision sanding of MDF/HDF/plywood core
Primer Application – 6-zone infrared drying at 120°C
UV Coating – 3-5 layer roller coating with 380-420nm wavelength curing
Quality Control – Automated defect detection (0.1mm resolution)
Applications
Commercial Interiors: Retail displays, hotel lobbies, healthcare walls
Residential Millwork: Kitchen cabinets, wardrobe systems, wall paneling
Specialty Uses: Laboratory furniture, cleanroom partitions, marine interiors
Performance Advantages
Maintenance Savings: 60% reduction in cleaning time vs. painted surfaces
Installation Efficiency: Pre-finished panels reduce onsite labor by 40%
Design Versatility: Available in 500+ RAL colors with 12 texture options
Sustainability: 95% VOC-free manufacturing process
Comparative Analysis
| Characteristic | UV Board | Traditional Lacquer | Laminate |
|---|---|---|---|
| Cure Time | 15 sec | 72 hours | N/A |
| Scratch Resistance | 4H | 2H | 3H |
| Edge Sealing | Not required | Required | Required |
Installation Guidelines
Subfloor Requirements: ≤2mm/m flatness
Adhesive Selection: PU-based for high-stress areas
Tool Compatibility: Carbide-tipped blades recommended
Market Trends
Smart Surfaces: Emerging integration with touch-sensitive coatings
Antimicrobial: Silver-ion embedded versions gaining traction in healthcare
Thin-Panel Innovation: 3mm boards with reinforced cores for curved applications
