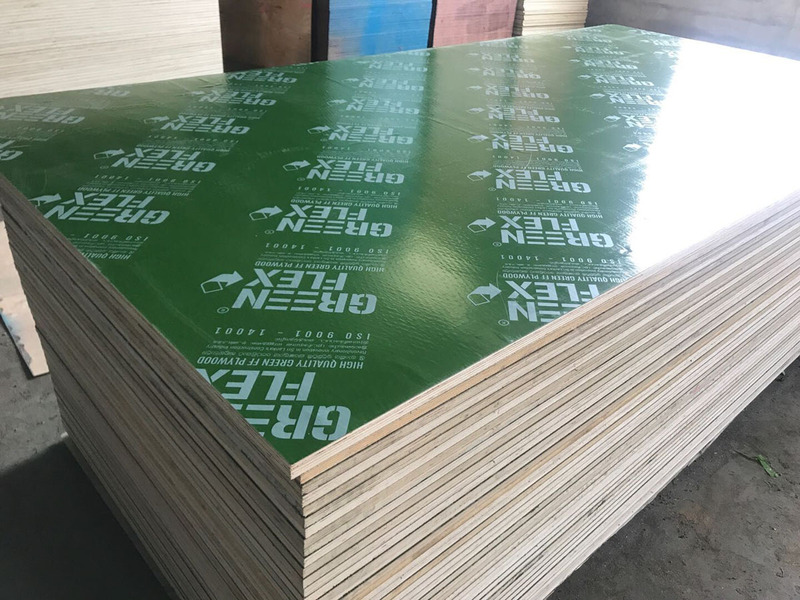

Green film faced plywood is a premium construction panel specifically engineered for concrete formwork applications. The distinctive green phenolic resin film surface provides excellent moisture resistance and durability, making it ideal for demanding construction projects requiring multiple reuses. This specialized plywood combines weatherproof performance with superior concrete finish quality.

Key Features

1. Surface Technology

   • 150-300g/m² green phenolic resin overlay

   • Anti-slip textured finish (Ra 4.0-6.0μm)

   • UV-resistant for extended outdoor exposure

2. Core Construction

   • Select hardwood (birch/eucalyptus) or softwood core

   • Cross-laminated with WBP glue (EN 314-2 compliant)

   • Density: 600-750 kg/m³ (EN 323)

3. Performance Advantages
   ✓ High Reusability - 60-120 cycles (depending on grade)
   ✓ Excellent Release - Non-stick concrete surface
   ✓ Weather Resistance - Withstands -30°C to +90°C
   ✓ Eco-Friendly - FSC-certified options available

Technical Specifications

Manufacturing Process

1. Veneer Preparation

   • Precision peeling (1.8-2.5mm veneers)

   • Controlled drying (8±1% MC)

2. Film Application

   • Multi-stage resin impregnation

   • Hot pressing at 155-165°C (30-35kg/cm²)

3. Quality Control

   • Automated thickness calibration

   • Waterproof edge sealing

Application Guide

Installation Best Practices

• Storage: Flat stacking with <0.8m height difference

• Cutting: Use 80-100 tooth carbide blades

• Jointing: Aluminum formwork frames recommended

• Maintenance: Clean after each use with mild detergent
