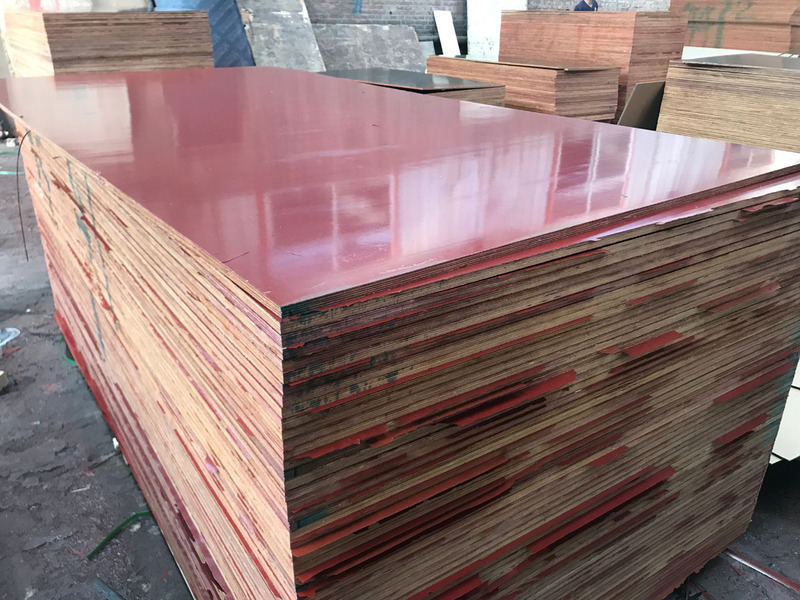

Red film faced plywood is a high-performance construction formwork panel featuring a durable phenolic resin-impregnated red film surface. Designed for demanding concrete pouring applications, this specialized plywood offers superior moisture resistance and extended service life compared to standard formwork materials. The distinctive red color provides excellent jobsite visibility and quality control.

Key Features

1. Surface Technology

   • 180-350g/m² red phenolic resin overlay

   • Anti-slip textured finish (Ra 3.8-5.5μm)

   • UV-stabilized for outdoor exposure up to 18 months

2. Core Construction

   • Premium hardwood (birch/maple) core

   • Cross-laminated with WBP glue (water boil proof)

   • Density: 650-800 kg/m³ (EN 323 standard)

3. Performance Advantages
   ✓ Extended Reuse - 80-150 cycles (proper maintenance)
   ✓ Superior Release - Non-stick concrete surface
   ✓ Extreme Weather Resistance - -35°C to +100°C
   ✓ Eco-Certified - FSC & PEFC certified options

Technical Specifications

Manufacturing Excellence

1. Veneer Selection

   • Rotary-cut 2.0-2.8mm veneers

   • Precision drying to 7±0.5% MC

2. Film Application

   • Triple resin impregnation process

   • Hot pressing at 160-170°C (32-38kg/cm²)

3. Quality Assurance

   • 100% thickness scanning (±0.15mm)

   • Waterproof edge sealing (double coating)

Application Guide

Installation Protocol

• Storage: Flat stacking with <0.3m height variation

• Cutting: 100-120 tooth tungsten carbide blades

• Jointing: Aircraft-grade aluminum profiles

• Maintenance: Specialized cleaning compounds
